Versatile.
Having a small form factor, the ability to mount on a wall or pedestal, and a maximum AC output of 22 kW, this charger is deal for residential and commercial use.
Robust.
IP65 ingress protection for indoor or outdoor use, and wide range of operating temperatures.

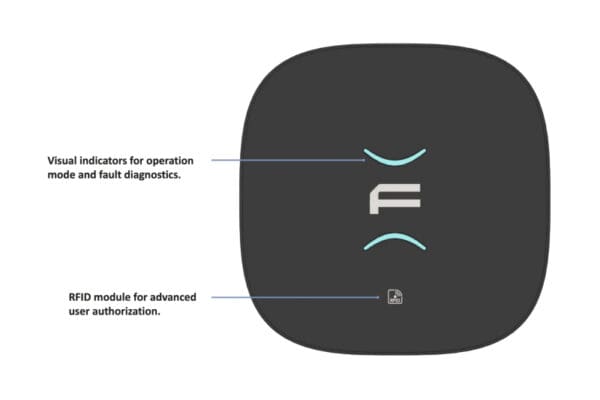

Intelligent design.
Charge using plug & play, RFID cards, or remotely via a management system. Supports smart meter integration to provide dynamic and static load balancing.
Model Details
| TALON 7 | TALON 11 | TALON 12 | |
|---|---|---|---|
| Rated Power (kw) | 7KW | 11KW | 22KW |
| Phases | 1-Phase | 3-phase | 3-phase |
| Rated Voltage (vac) | 230 | 380 | 380 |
| Rated Current (a) | 32 amps | 16 amps | 32 amps |
| Charging Outlet | Type 1 or Type 2 cable (not included) | ||
| Housing Material | PVC for outdoor use | ||
| Mounting | Wall or pedestal (not included) | ||
| Wi-Fi- Enabled | Yes | Yes | Yes |
| 3G/4G Enabled | Optional | Optional | Optional |
| Residual Current Protection | Type A (optional 6 mA RDC-DD) | ||
| Ingress Protection | IP65 (dust and rain resistant) | ||
| Dimesnsions (W x D x H in mm) | 229x100x229mm | 229x100x229mm | 229x100x229mm |
| Weight (kg) | 4.4 kg | 5.2 kg | 5.4 kg |
